Create Excel Connection using Informatica IICS

 https://usw5.dm-us.informaticacloud.com/cloudUI/products/administer/main/addOnConnectors

Login to Informatica

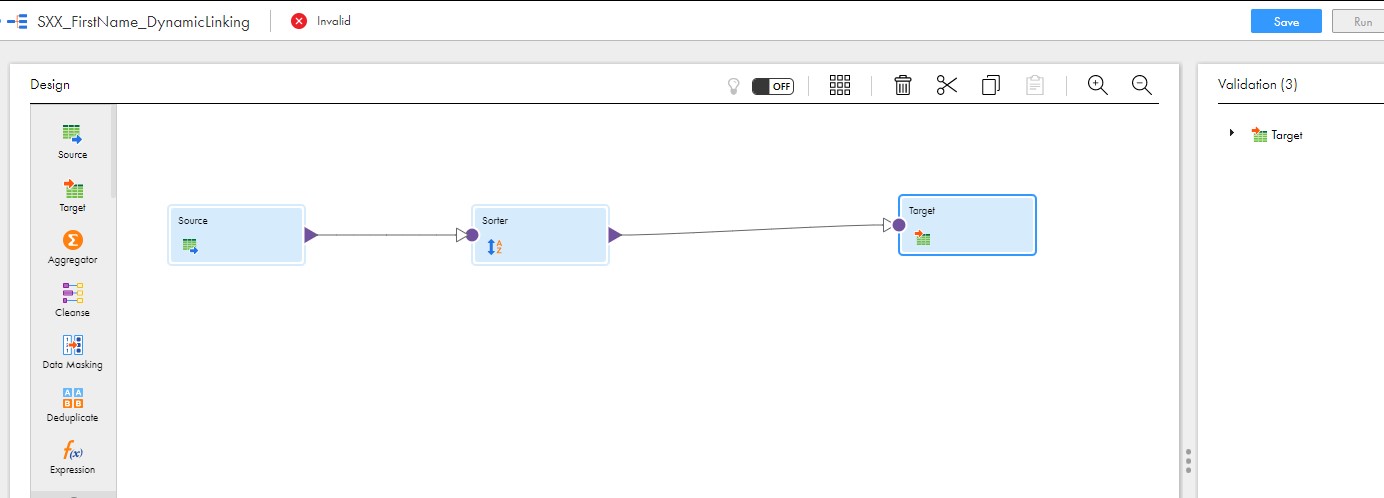

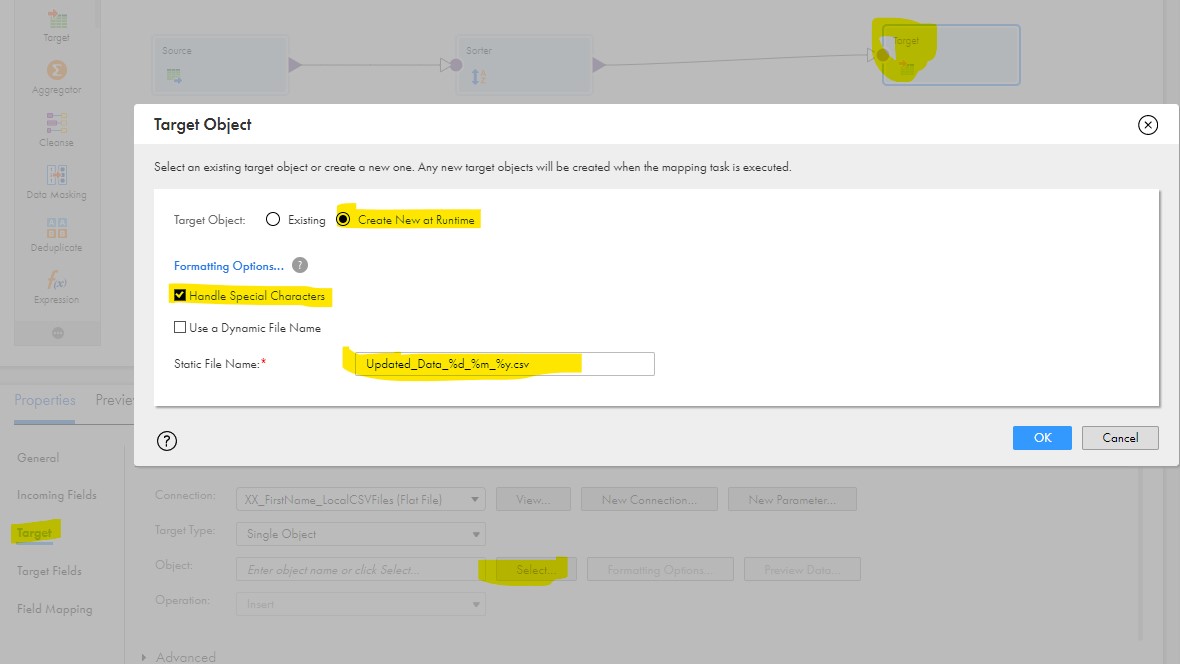

Create Dynamic Linking in a Mapping using Informatica Data Integration (IICS)



https://usw5.dm-us.informaticacloud.com/cloudshell/showProducts

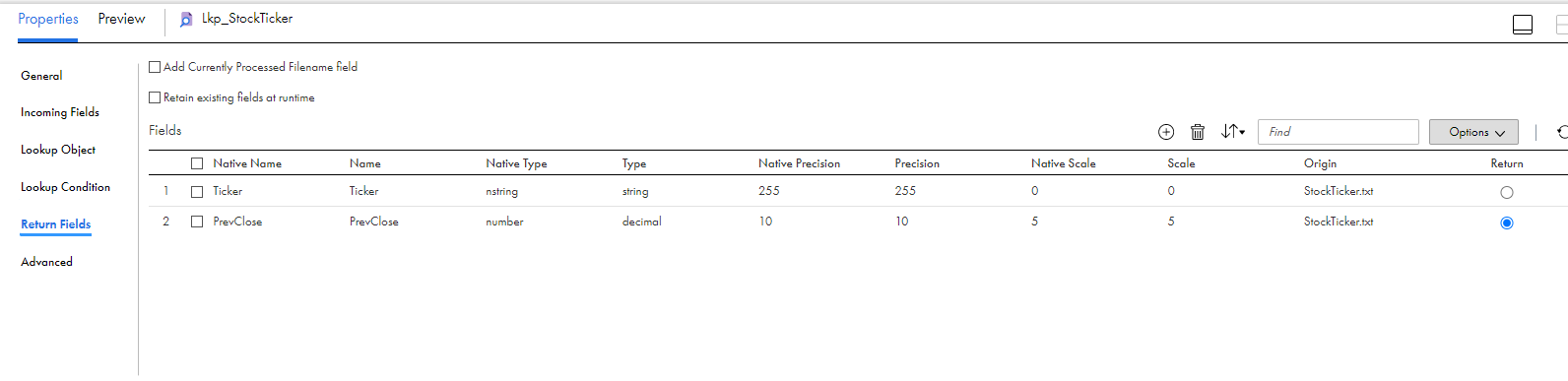

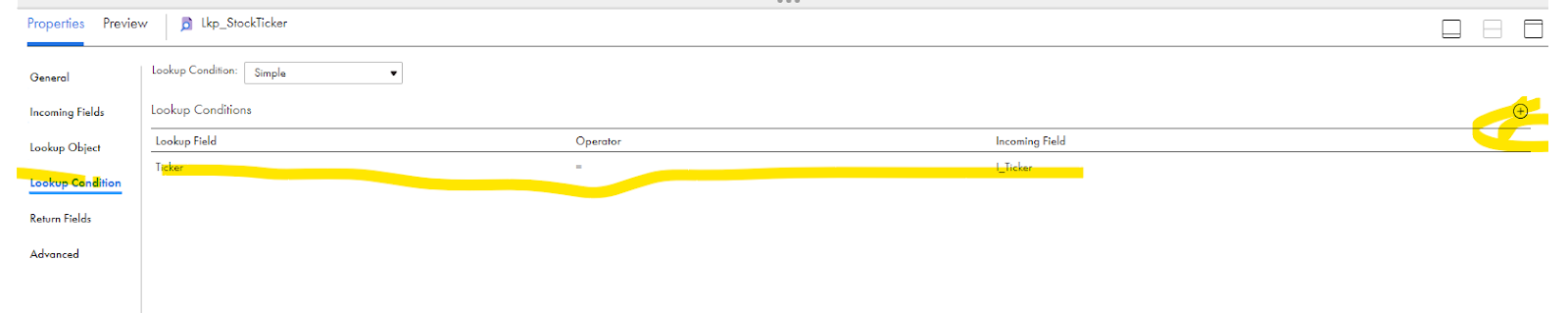

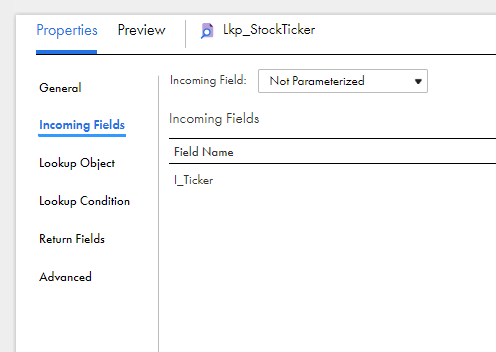

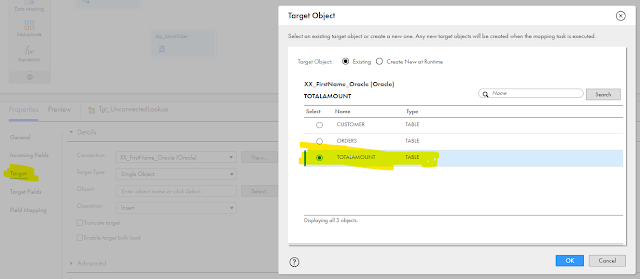

Create mapping using Unconnected lookup in Informatica (IICS)

 Login to Informatica Cloud services

https://usw5.dm-us.informaticacloud.com/cloudshell/showProducts



To create a new --> Mapping tab -->mapping

Click on create.

Informatica pmrep commands for daily administrative tasks



1) infacmd.sh

This is inbuitl utlity present in the $INFA_HOME/server/bin directory

AddusertoGroup

RemoveUserFromGroup

2)

Informatica Power Center Meta Data tables details and queries



Informatica saves the Data in three levels

1) PCD Level :  These are under ISP_PCD Schema which has high level infromation

2) Repository Level :  These are reposiotry level.

3)  Object Level : This permission or attributes related specific object like Workflow, Folder, Session level etc

ISP_PCD :

-----------

ISP_RUN_LOG :

PO_IDOBJ: Provide the individual login details

PO_OSPROFILE: Os profile details

PO_USERINFO : gets user infromation

ISP_PCR Schema Objects :

-------------------------------------

REP_SUBJECT : Folders names (OPB_SUBJECT)

REP_WFLOW_RUN : Gives information about workflow run details

REP_SESS_LOG: Provide the run stats of worklfow and sessions. Using this table we can check start time, end time, succesful_row,actual_rows.

REP_DEPLOY_GROUP :  Gives the information of Deployment groups.

REP_TASK_INST_RUN :  Gives the no of times the task runs for workflows.

REP_TASK_INST:  Gives the information at task level instance

REP_SESSION_CNXS : Repository connections

REP_SESS_WIDGET_CNXS :  Transformation level connections

OPB_TASK : Gives the information at object level task  instance

OPB_WFLOW_RUN:Gives the information at object level workflow instance

OPB_SESSION_TASK_LOG : Gives the information at  session task logs

OPB_DTL_SWIDG_LOG :

OPB_ROLE : Roles in Repository

OPB_REPOSIT_INFO  : Provides the current repository details in informatica

OPB_CNX : Provides the connection details (DB, MQ etc) in a specific repository

OPB_OBJECT_ACCESS :  Gives details about each object access details

OPB_SUBJECT :  Folder details

OPB_USER_GROUP :  Specifies user belong to how many groups

OPB_USER: user details in a repository

OPB_GROUPS :  groups in a repository

OPB_CNX_ATTR : provides the connection attributes like connection string ,username etc

Query to get Sequence Number

------------------------------------------

Query to get Mapping Details

----------------------------------------

select distinct concat (F.SUBJ_NAME, concat(., OM. MAPPING NAME)) AS Mappinname

from OPB_MAPPING OM  JOIN OPB_SUBJECT F ON OM.SUBJECT_ID = F.SUBJ ID

where NAPPING_NAME = 'mpl_test';

All Connection details in a repository

----------------------------------------------------

SELECT CNX SUBTYPE NAME,

C.OBJECT NAME name,

C.CONNECT STRING,

ca.attr_id,

CA.attr value data source,

C.LAST SAVED,

C.USER NAME

FROM OPB CNX C INNER JOIN OPB MMD CNXG

ON C.OBJECT ID=CA. OBJECT ID

ON G.CNX OBJECT TYPE= C. OBJECT TYPE

AND G.CNX BJECT SUBTYPE-C. OBJECT SUBTYPE

INNER JOIN ISP PCR EIG.OPB CNX ATTR CA

WHERE G.CNX OBJECT TYPE = 73

and ca.attr id =11

ORDER BY CNX SUBTYPE NAME, connect_string,

attr value;

Workflows with connection details

------------------------------------------

SELECT WF.SUBJECT AREA AS FOLDER NAME, WF.WORKFLOW NAME AS

T.INSTANCE NAME AS SESSION NAME, T.TASK TYPE NAME,

C.CNX NAME AS CONNECTION NAME, V. CONNECTION SUBTYPE, V.HOST_NAME

V.USER NAME, C. INSTANCE_NAME, C.READER_WRITER_TYPE, C.SESS_EXTN_OBJECT_TYPE

FROM REP_TASK_INST T ,REP_SESS_WIDGET_CNXS C

REP_WORKFLOWS WF, OPB_MAPPING OM , V_IME_CONNECTION V

WHERE T.TASK ID = C.SESSION ID

AND WF.WORKFLOW ID = T.WORKFLOW ID AND C.CNX NAME = V.CONNECTION_NAME
